    Vacuum Degassers

    Degasser is special equipment used in solids control system to remove the gases such as hydrogen sulfide, carbon dioxide and natural gas from the drilling mud before they reach the shale shakers.
    FD Petrol mud gas separator or degasser is a vacuum unit, which is mainly composed of vacuum tank, vacuum pump, motor, vacuum pump system and electrical control box. FD Petrol vertical and horizontal vacuum degasser for your option.

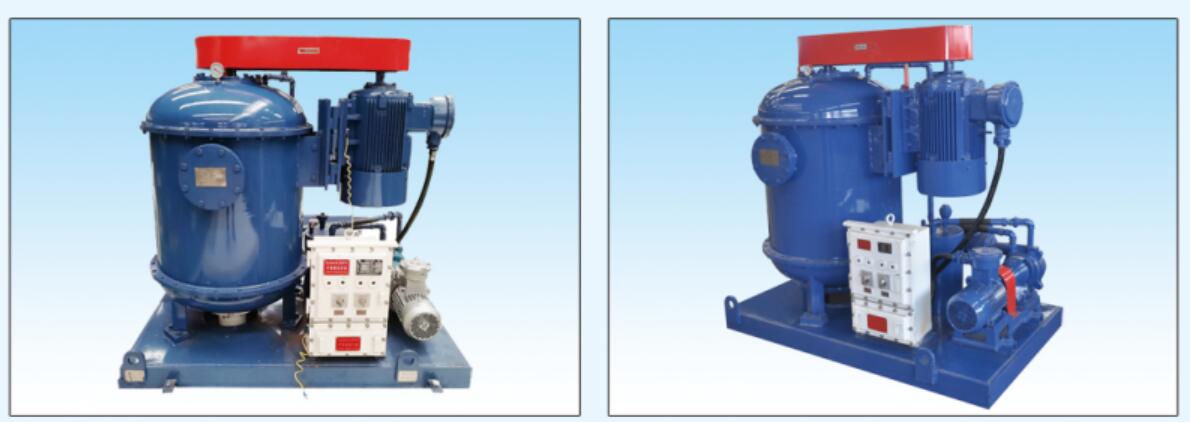

    Vacuum Degassers(图1)

    FD Petrol vacuum degasser adopts three methods to separate gases from the drilling fluid:
    1. The drilling fluid is thrown toward blade and tank wall in jetting form through the windows around the hollow shaft of rotor, the gases contained in the drilling fluid break and escape from drilling fluid.
    2. Negative pressure is generated in the vacuum tank by vacuum pump, the bubbles in the drilling fluid expand to surfaces and break, and thus gases can be separated from mud much easier
    3. The foam separator and two layers impeller continuous rotate which drive the gases appear and break.
    FD Petrol Vacuum Degasser Specs

    Model ZCQL240 ZCQW240
    Treating Capacity 240m3/h(1200GPM)              240m3/h(1200GPM)
    Vacuum Degree 250~430mmHg 250~530mmHg
    Main Motor 18.5Kw 18.5Kw
    Main Motor Model YB2200L1—6 YB2180M-4
    Rotation Speed 960rpm 980rpm
    Motor Driven Method Coupling Pulley
    Vacuum Pump Motor 3Kw 3Kw
    Pump Motor Model YB2100L-2 YB2100L-2
    Vacuum Pump Model SZK—8 SZK—8
    Dimension 1700×1030×2260 mm 1700×1030×1660 mm
    The choice between horizontally- or vertically-mounted units is typically based on the footprint requirements of the specific rig.
    Mud/gas separators and degassers are just a few of the many solids control and drilling waste management offerings that FD Petrol supplies to the oil and gas industry.
