    Shale Shaker

    Shale shaker plays an important role as first mechanism for solids removal. If it fails in normal operation, there will be trouble for the subsequent solid control equipments (cyclone and centrifuge etc). Therefore, the choosing of drilling fluid shaker is very important.
    FD Petrol FZS series shale shaker is specially designed for separating solids from drilling fluid. Configured high G force USA martin motors, bigger screen area and high volume treating capacity it is applicable for various mud purification systems and has extraordinary satisfactory field working performance. As per customer requirement, we can design and manufacture double and triple shakers.

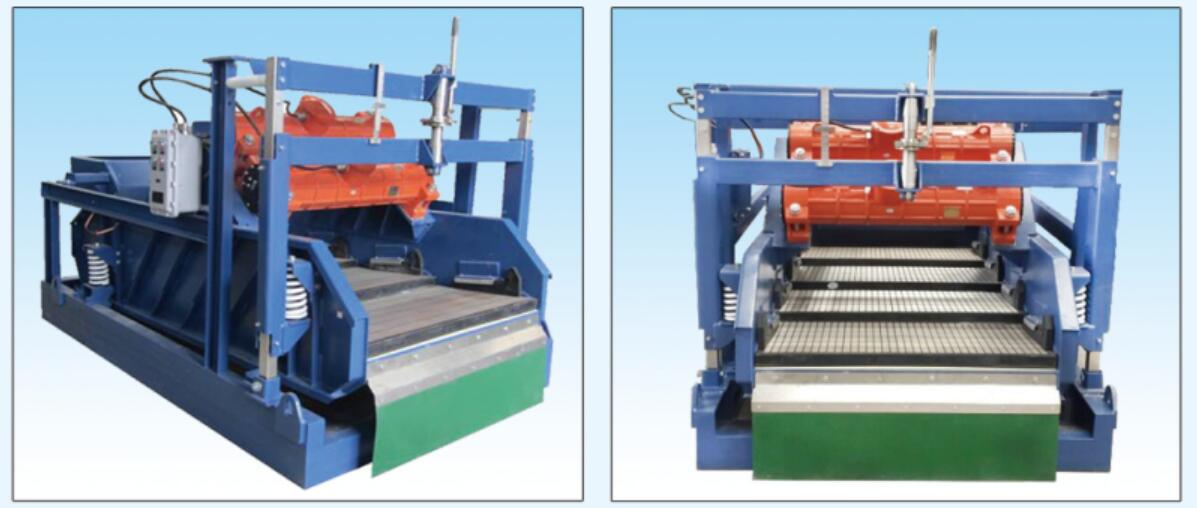

    Shale Shaker(图1)

    FD Petrol Shale Shakers Spec

    Model FZS225 FZS277 HG320
    Capacity 600-800GPM 500-600GPM 500-600GPM
    Vibration Mode Linear Motion
    Screen Dimension 1075x700mm 1165x585mm 1250x630mm
    Screen Area 2.25㎡ 2.77㎡ 3.2㎡
    Screen Qty 3 Piece 4 Piece 4 Piece
    G Force ≤7.5G(Adjustable) ≤8.3G(Adjustable)
    AWD -1°~+5° -2°~+6° -1°~+5°
    Weight 1930kg 1650kg 1880kg
    Dimension (mm) 2950x1610x1495 2894x1991x1581 3070x2050x1900

    FD Shale Shaker Features and Benefits
    1.High G force reach 8.5G ,linear motion so that the drill cuttings can move on the screen surface regularly and smoothly.
    2.Bigger screen area 3.2㎡,higher treating capacity 1280GPM.
    3.Shaker deck angle is AWD to adapt to different drilling rates and mud property
    4.Pre-tightened bilateral fixation mechanism shaker screen to facilitate change of screen. Even tension of the screen prolongs service life.
    5.Sand blasting on all metal structural parts reach to class Sa2.5. Strong adhesion of paint reduces erosion of mud on the equipment
    6.The electrical control system adopts the Schneider contactor with reliable quality. Time accumulator is equipped to guarantee the lubricating oil is filled into the motor in time and the whole electrical control system has thermal overload, over current and low-voltage protection, which can effectively protect safe operation of the vibration motor.
