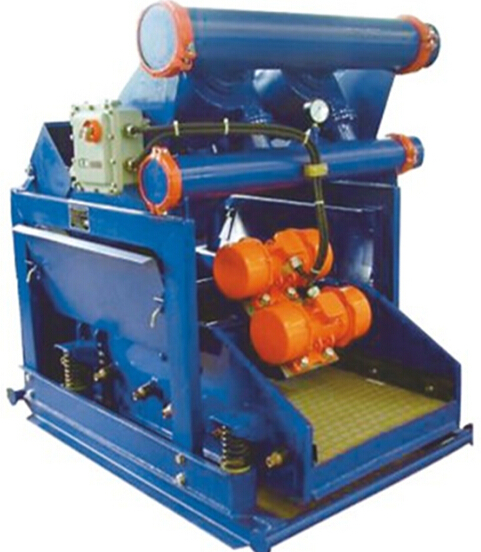

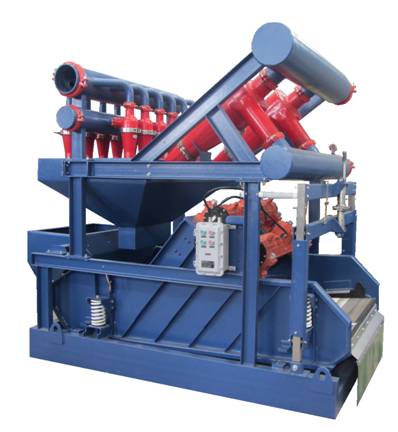

Mud Cleaner
Mud cleaner is a combined unit of shale shaker ,desander ,desilter hydro cyclones and manifold. In drilling mud solids control system ,it is installed behind shale shaker as second and third grade solids control equipment, minimum separation point 15um.The fluids recovered can be pumped back to well use directly or for next phase separation by decanter centrifuge for ultra fine solids removal.
FD Petrol mini mud cleaner integrate smaller footprint drying shaker and desander,desilter hydro cyclones，offers better performance than traditional desander and desilter .It is an economical solutions for barite recovery and separation of LGS.Most popular for small power drilling rig in oil&gas,CBM ,HDD industry.
FD Petrol Mud Cleaner Specs
|
Model
|
FD1S8N
|
FD2S12N
|
FD3S16N
|
Mini Cleaner |
|
Treating Capacity
|
100~120m³/h
|
200~240m³/h
|
300~360m³/h
|
240m³/h |
|
Desander Cones
|
1x10inch
|
2x10inch
|
3x10inch
|
2x12inch |
|
Desilter Cones
|
8x4inch
|
12x4inch
|
16x4inch
|
4x10 inch |
|
Work Pressure
|
0.25~0.4Mpa
|
0.25~0.35Mpa | ||
|
Inlet Pipe
|
6inch
|
6 inch | ||
|
Discharge Pipe
|
8inch
|
8 inch | ||
|
Min Cut Point
|
15um
|
15 um | ||
|
Shaker Shaker
|
FD Linear Motion
|
FD Mini Shaker | ||
|
Vibration Force
|
7.5G Adjustable
|
6G | ||
|
Vibrator Motor
|
2x1.5KW Italy Oli or USA Martin Brand
|
2x0.5KW | ||
|
Screen Area
|
1045x700mm 3 Panels 2.25㎡
|
1.6㎡ | ||
|
Deck Adjustment
|
-1°~+5°
|
-1°~+3° | ||
|
Dimension
|
2770x1610x2200mm
|
2000x1430x2000mm | ||

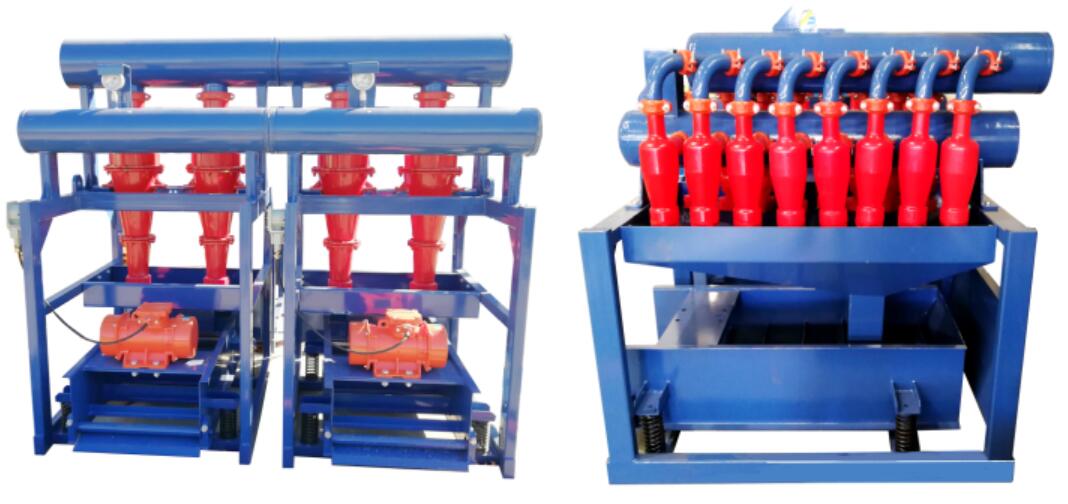

FD Petrol Simple Desander& Desilter
FD Mud Cleaner Features and Benefits：
1.Hign efficiency and compact in design .Mud cleaner is a compact unit of desander ,desilter and shale shaker, best choice for weighted mud barite recovery and separation of LGS
2.Desander hydro cyclones made of three parts, when one part wears out ,it can be replaced separately.Desilter apex diameter adjustable according to the sand volume in drilling mud
3.Desander and desilter cones made of PU material ,high corrosion resistance.
4.Linear motion underflow shaker ,available of more than 175mesh shaker screens ,no screen block and mud run. Deck angel Adjustable while drilling -1°~+5°
5.High treating capacity reach 1500 GPM ,pretension type double sides fixed screen fast changing
6.Clamp type manifold for pipe and hydro cyclones, reliable connection and easy maintenance
