    You are here： HOME > Products Center > Solids Control Equipment

    Decanter Centrifuge

    FD Petrol as the first oilfield decanter centrifuge manufacture in China since 1995,the only decanter centrifuge manufacture in China who has water&OBM test platform,mud test lab. totally more than 1800 units decanter centrifuges jobsite worldwide in all harsh environment for barite recovery, solids control service ,dewatering unit and drilling waste management.

    FD Petrol gear box drive or PLC decanter centrifuge utilize SS304/316L stainless steel material bowl, screw conveyor welded with tungsten carbide tile or hard facing, matched with advanced PLC panel fully meet your jobsite requirement.

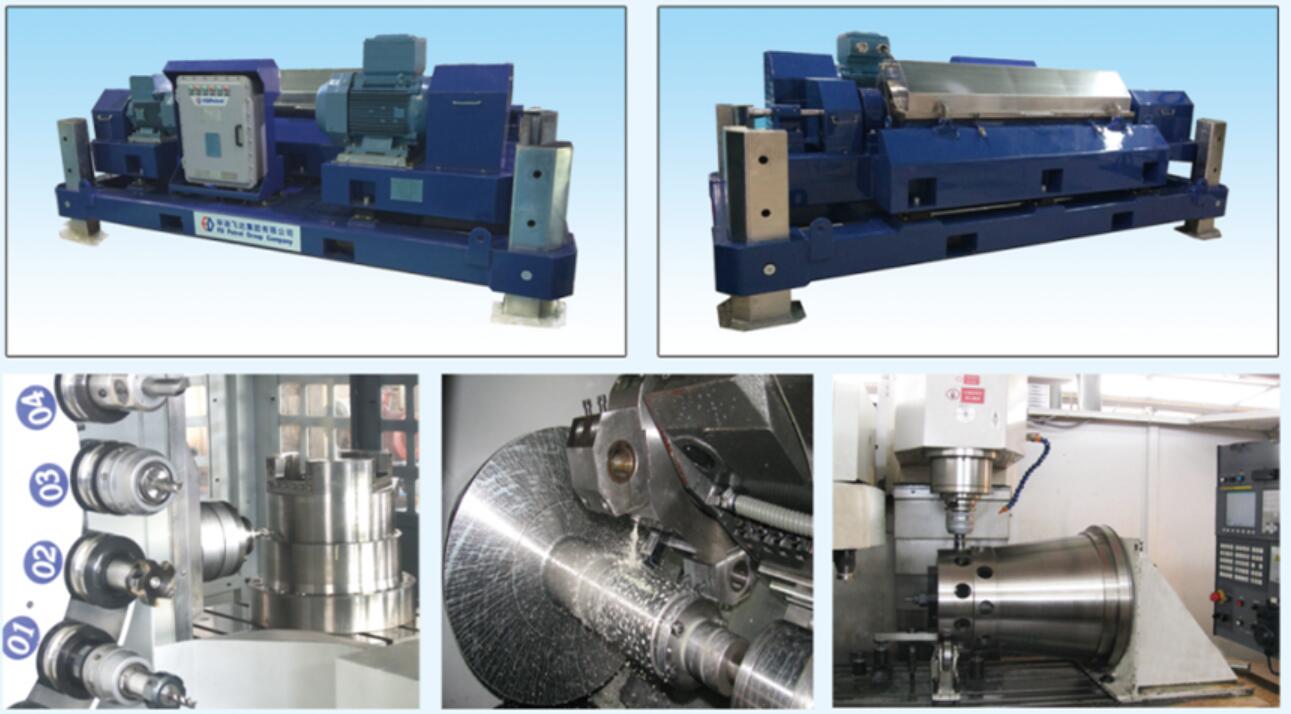

    Decanter Centrifuge(图1)

    Solids Control & Barite Recovery  Centrifuge Specs

    Model FDLW450-842 FDLW600-945 FDLW355-1250 FDLW450-1250 FD-1865
    Capacity 40m³/h 60m³/h 40m³/h 60m³/h 90 m³/h
    Bowl Dia 18inch 24inch 14inch 18inch 22inch
    Bowl Length 33.2inch 37.2inch 49inch 49inch 73.4inch
    Speed 2200RPM 1600RPM 0-3400RPM 2500PRM 2600RPM
    G-Force 1219  860  3180  2250 1700
    Cut Point 5~7μm 5~7μm 2µm 5-7μm 2μm
              All Motors &Control Panel Comply With ExdIIBt4 or IEC, ATEX Standard









    Drilling Waste Management Centrifuge Specs

    Model  DW-2000
    Max Design Speed 4000RPM
    Max Operation Speed 0-3200RPM
    Max Design Torque 11000Nm
    Working Torque 7000Nm
    Control Panel PLC Stainless Steel Explosion Proof
    Screw Protection  Tungsten Carbide Tile
    Electrical Components ABB&Schneider

    Waste Management Centrifuge Features

    1.Optimized fluids inlet system minimized the breakage for the material during feeding, result in more effective treatment
    2.The inside structure adjustment satisfy the high percentage solids contain in drilling waste retreatment and big volume solids discharge requirement .Our high pulling torque and power features design can meet different worksite needs.For oil based mud treatment ,oil on the solids 10%-13%
    3.According to different geology requirement for drilling waste treatment, the electric control system adopt VFD design for main motor, back motor and pump motor ,ABB frequency convertor,explosion proof control panel .Compact and stable in operation, fast and convenient in maintenance .
    4.Anti-plug system, when plug happens, the centrifuge will enter into automatic control, eliminate the plug,make the centrifuge work normal again, completely eliminate centrifuge bowl plug problem.


    FD Petrol Drilling Waste Management & Solids Control & Rig Camp
