    You are here: HOME > Products Center > Shaker Screens

    FD Petrol manufacture replacement shale shakers of international famous brand shakers to meet different clients preference request.
    FD Petrol provide replacement screens according to API RP13C design requirement at fine quality and fair price.The screens frame material is carbon steel Q235,screen mesh is SS304 or SS316L,strong adherence glue and NBR ensure longer service time.


    Brandt King Cobra Shaker Screens
    Mesh size API20—API450
    Dimension Length: 1250 mm
    Width: 635 mm
    Replacement Shaker Screen Weight 13 kg (28.6 lb)

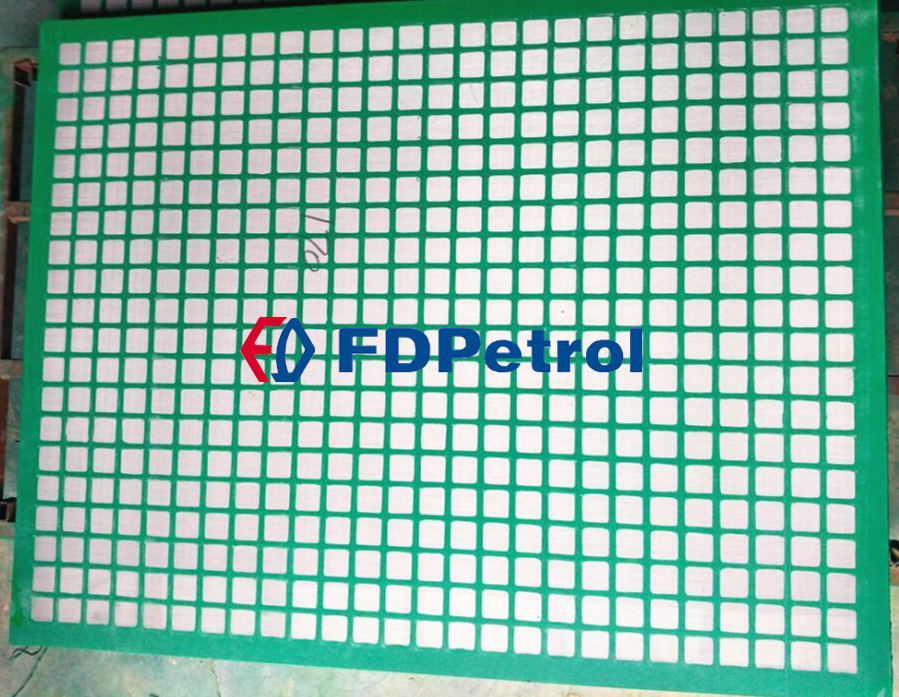

    Shaker Screens(图1)

                                NOV Brandt King Cobra Screens for Example
    API Design d100(cut point,μ) Conductance(Kd/mm) Non-blanked Area(sq.ft)
    API 45 328.1 4.93 4.95
    API 50 321.6 3.98 4.95
    API 60 255.1 2.68 4.95
    API 70 230.4 2.55 4.95
    API 80 192.7 2.18 4.95
    API 100 164.2 1.72 4.95
    API 120 128.6 1.17 4.95
    API 140 101.8 0.99 4.95
    API 170 83.2 0.93 4.95
    API 200 79.5 0.67 4.95
    API 230 68 0.55 4.95
    API 270 55 0.37 4.95
    API 325 46 0.32 4.95


    Swaco Mongoose Screen

    There are common pre-tensioned steel frame screen and composite frame shaker screen. Composite frame screen have longer service life, better appearance, and convenience on operation.

    Swaco Mongoose screen
    Mesh size API20—API450
    Dimension Length:1165mm (45 9/10”)
    Width: 585mm (23”)
    Replacement Shaker Screen Weight Steel frame: 14kg (28.6lb)
    Composite frame: 13kg (26.4lb)


    Brandt VSM 300 Shaker Screens:

    VSM 300 series shale shaker screens are compatible with all BRANDT shakers There will be mainly RHD series shaker screen, XF screens.

    VSM300 shaker screen detail
    1. VSM300 shaker Decks.
    This shale shaker is three decks. The first deck is scalping, then the primary, last deck is called secondary deck.
    2. VSM300 Shaker screen details
    Scalping deck will be fitted with 3 pcs screen, primary deck will be fitted with 4 pcs screen, secondary deck is fitted with 4 pcs screen. Totally, the VSM300 request 11 pcs screen. All of them are steel frame screen and pretension type.


    Item Dimension Weight Non-blanked Area(Sq.ft)
    Scalping 940*676*38mm 10.5kg 4.6
    Primary 885*686*38mm 10kg 4.3
    Secondary 686*208*20mm 3kg 2.3
