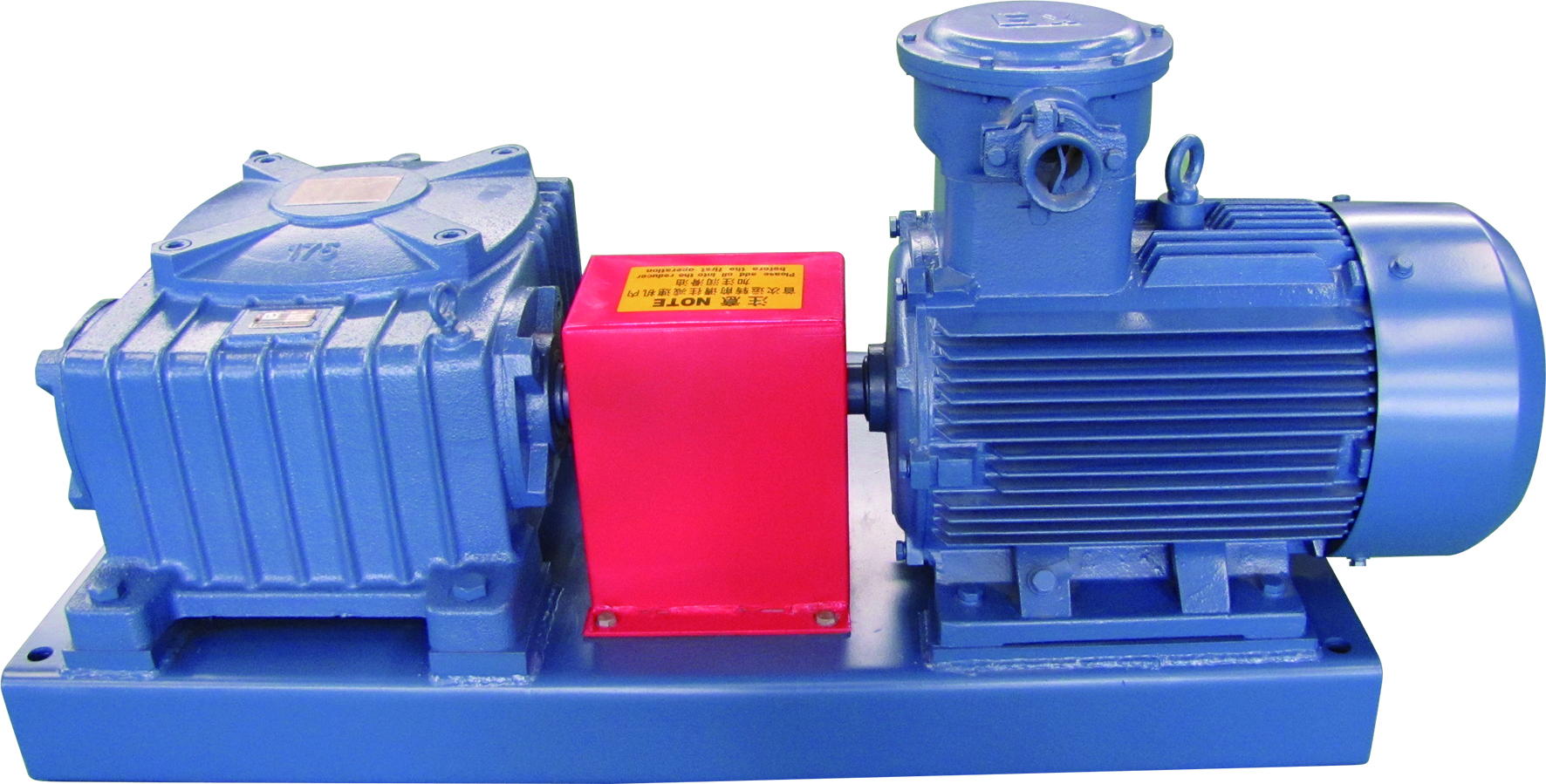

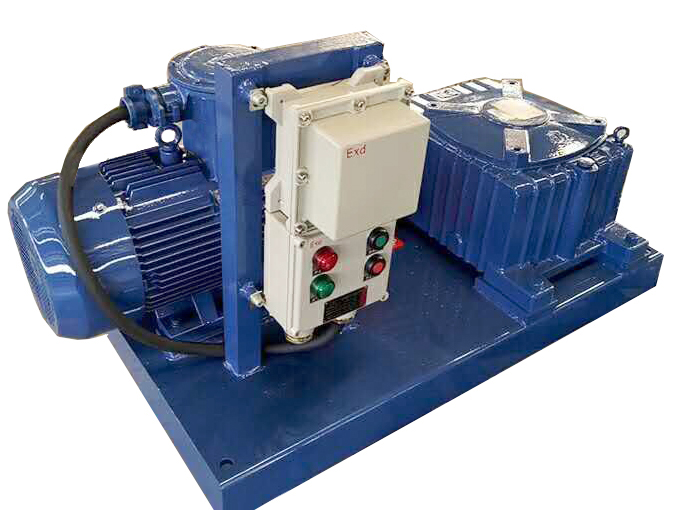

Mud Agitator
FD Petrol NJ series mud agitator as part of mud circulation system ,main function is mixing the mud so as to avoid cuttings and sands settlement in the mud tank.
|
Model
|
NJ5.5
|
NJ7.5
|
NJ11
|
NJ15
|
NJ18.5
|
|
Motor Power
|
5.5kw
|
7.5kw
|
11kw
|
15kw
|
18.5kw
|
|
Impeller No.
|
1 | 2 | 2 | 2 | 2 |
|
Upper Impeller
|
Φ760mm
|
Φ760mm
|
Φ850mm
|
Φ920mm
|
Φ1000mm
|
|
Down Impeller
|
N/A
|
Φ760mm
|
Φ500mm
|
Φ500mm
|
Φ500mm
|
|
Speed
|
73rpm
|
73rpm
|
73rpm
|
73rpm
|
73rpm
|
|
Dimension
|
1090*640*570mm
|
1275*660*630mm
|
1275*660*630mm
|
1320*730*630mm
|
|
|
Weight
|
392kg
|
418kg
|
472kg
|
535kg
|
640kg
|
Shaft Length and Mud Tank Depth Table
|
Tank Depth（mm）
|
H（mm）
|
H1（mm）
|
|
1000~1400
|
750
|
0
|
|
1400~1700
|
1250
|
500
|
|
1700~1900
|
1550
|
500
|
|
1900~2200
|
1700
|
500
|
Note：1.The shaft length can be made according to customers requirement
2.If tank depths surpass 2.4m,need to add centered casing.
