    Verti G Cuttings Dryer

    FD Petrol  SGL series cuttings dryer R&D work starts in 2008, it is successfully launched into market in 2010 and applied patent design for the screen anti-pluging mechanism . The cuttings dryer system manufactured by us has been widely used at home and abroad achieved around 3% OOC  at best for OBM or SBM.Minimize the pollution to environment and maximize the recovery of drilling fluids. We understand it takes technology to make something compact and efficient while low energy consumption.

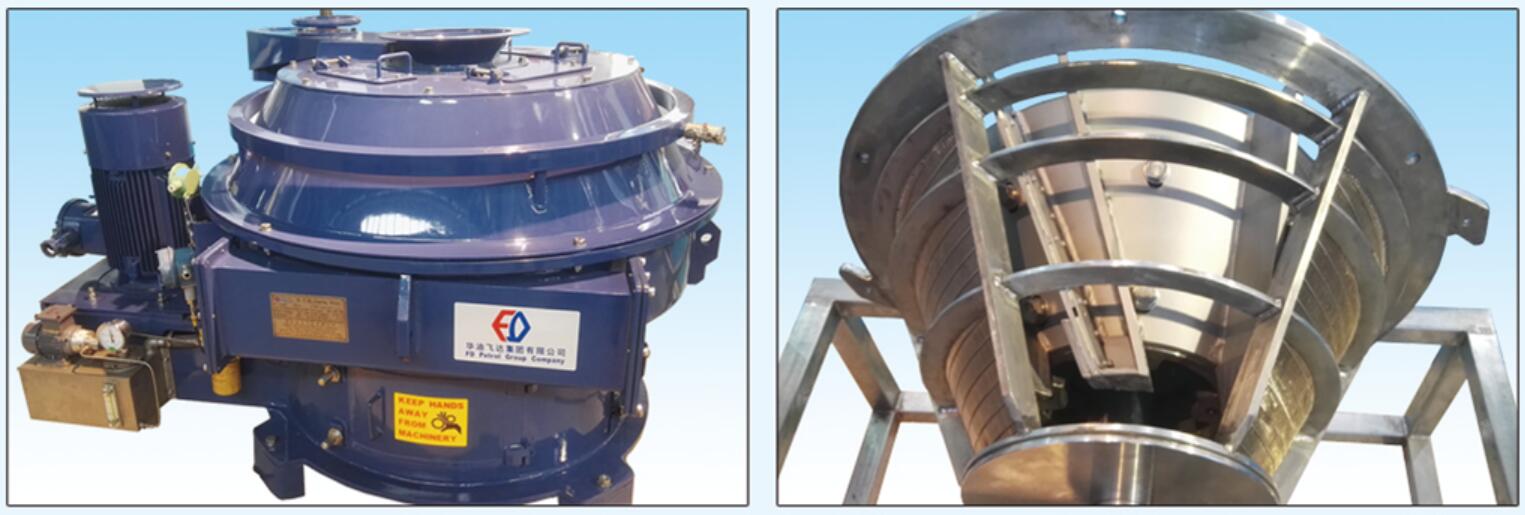

     Verti G Cuttings Dryer(图1)

    Model
    SGL-02
    SGL-12
    Capacity
    50 tons/hour
    70-80 tons/hour
    Screen Opening
    0.2/0.3/0.5mm ,Patent Floating Flights Tech Avoid Plugging Even for LCM
    Gear Box Ratio
    70:1
    75:1
    Screens Diamter
    750mm
    915mm
    Rotation Speed
    900rpm
    900rpm
    G Force
    340G
    414G
    Lubricant Tank
    20L
    50L
    Main Motor
    22kw
    55kw
    Oil Pump Motor
    0.37kw
    0.55kw
    Explosion Proof Standard:Exd II BT4 /IEC/ATEX
    Drying Performance : 5% OOC (Oil on Cuttings By Weight)
    Dimension
    2140x1600x2272mm
    2430x1790x2400mm
    Weight
    2250kg
    4100kg


    Features & Benefits

    1.Compact and low energy consumption
    2. Lubrication system from USA, closed loop and centralized lubrication mode
    3. Alloy screens from Japan
    4. USA&EU patented floating scraper flites,no need flushing and air pump ,avoid screens plugging even for LCM
    5.Patented top cover for easy cleaning and maintenance at jobsite,no need crane or forklift
    6. Flites material adopt Norway super wear resistant alloy, coated with Tungsten carbide

    7. Japan Kansai paintings, negative pressure painting technology, satisfy offshore corrosion resistant requirement


    Model

    FDSGL-03

    Feed Capacity

    40-80 TPH (10-20 kg/s)

    Screen Opening

    250 microns, 0.3mm, 0.5mm (Chrome-Hardened Profile Wire)

    Drive System

    Direct Drive Motor (No Belt System)

    Control System

    Independent VFD for Flights & Screen RPM



    Lubrication System

    Maintenance-Free Oil-Sealed Gearbox (No Active Lubrication Pump)

    Rotor & Flights Material



    Tungsten Carbide / Ceramic Lined

    Coating

    Zinc-Rich Powdered Industrial Coat

    Explosion Proof Rating

    NEMA 7 Class 1 – Division 1 / IS/IEC/EN 60079-1

    Centrate Collection

    Conical Centrate Collection Launder System

    Ingress Protection

    Protection Against Water Ingress & Maintenance Windows

    Compliance

    NFPA 70 (Class I – Division I) Standard

    Installation

    Skid-Mounted & Trailer-Mounted Option Available

    Safety Features

    Safe Staircase & Secondary Ladder for Maintenance Access

    The FD Petrol SGL-03Vertical Cuttings Dryer is engineered to deliver optimal performance under demanding drilling conditions. It is suitable for offshore and onshore drilling rigs and integrates with the overall solids control system to enhance operational efficiency.
