    Dewatering Unit

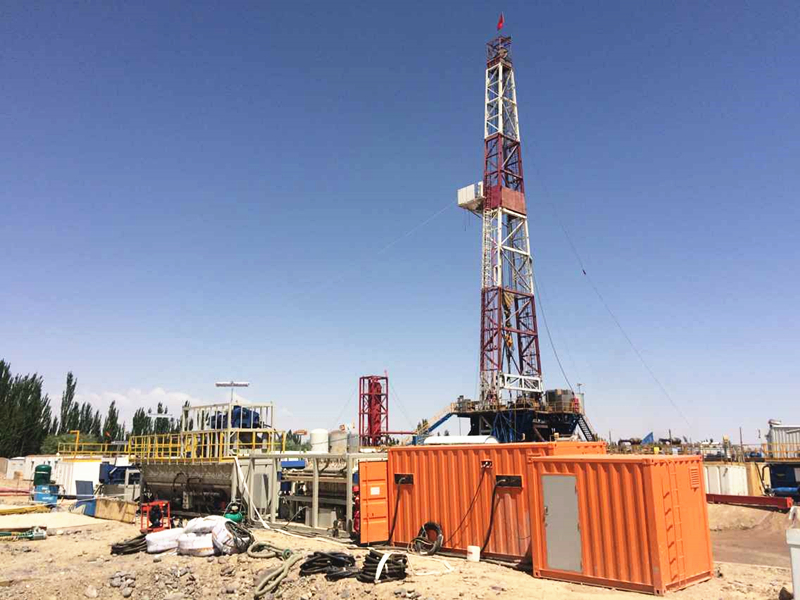

    FD Petrol explosion proof 20ft containerized automatic dosing unit is a high stand chemical dosing unit, solids and liquids separation and chemical dosing process is continuous, closed and stable.PLC system automatic warning for lack of polymers and avoid dry running. Through coagulants and flocculants technology to make the ultra fine particles (≤2microns) aggregate into large mass ,then separate by dewatering centrifuge.
    Dewatering Unit(图1)

    Model
    ADU -02
    Dosing Capacity
    0-2 m³/h
    Acid Tank
    1m³  1 unit  SS304
    Coagulation Tank
    1m³  2units  SS304
    Flocculation Tank
    1m³  3units  SS304
    Automatic Dosing Machine
    1 Unit
    Dosage Screw Pump
    Speed adjustable ,flow rate:20m3/h
    Mud Agitator
    6 units  SS304
    Static Mixer
    2 sets
    Electromagnetic Flow meter
    2" 1 set
    Ex-proof Air Conditioner
    1.5p 2 sets
    Electric Control
    PLC

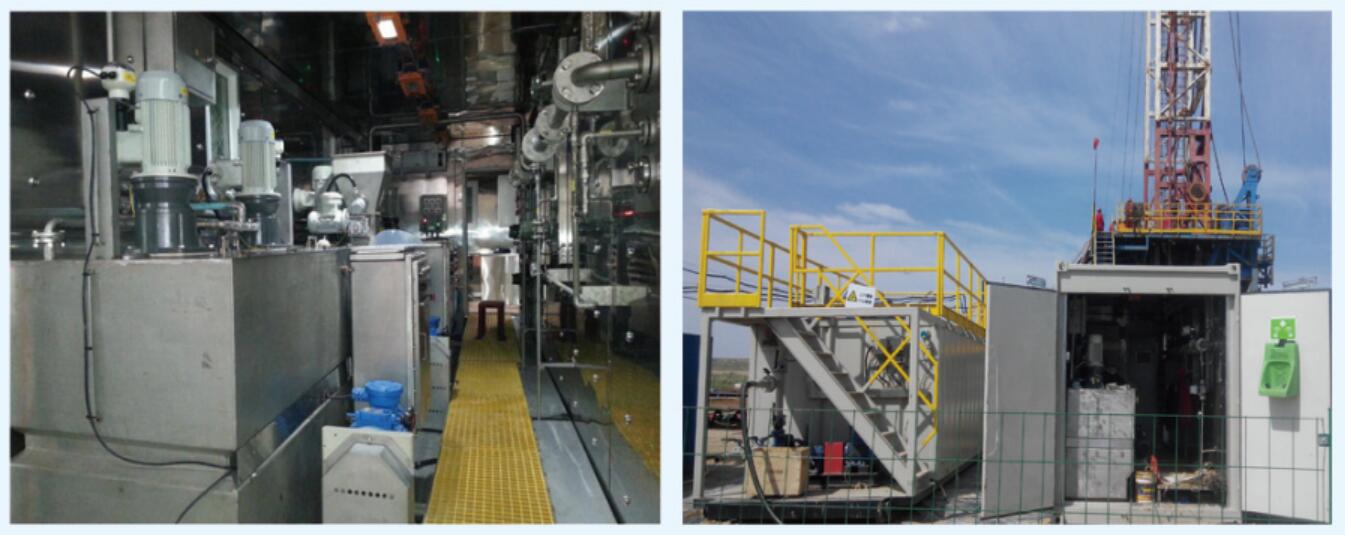

    Dewatering Unit(图2)

    Liquid phase zero discharge: liquid from first phase centrifuge can be used as active mud, second phase liquid from filtration unit reach discharge standard, three phase drinkable water.
    Solids Phase :Through Remediation technology,satisfy State earth quality standard, can be used for landfill, road spread, and re-agriculture.

    Data Taken from Wellsite Test Center

    Item
    PH
    COD
    Cr6+
    Total Chromium
    TSS
    GB8978 Grad One
    Clean Water
    7~8
    82mg/L
    0.15mg/L
    0.4mg/L
    10mg/L
    PASS
    Leaching
    7~8
    89mg/L
    0.15mg/L
    0.5mg/L
    14mg/L
    PASS
    Features&Benefitrs of FD Dewatering Unit:
    1.Adopt international famous chemical assistant centrifugal separation technology, solids phase separation and chemical pill mixing is continuous, closed and stable operation, less personnel and chemical cost.
    2.Chemical pill mix, flow capacity adjustable, water quality test work integrate in containerized  mud lab, easier operation, better working condition for high standard chemical mixing.
