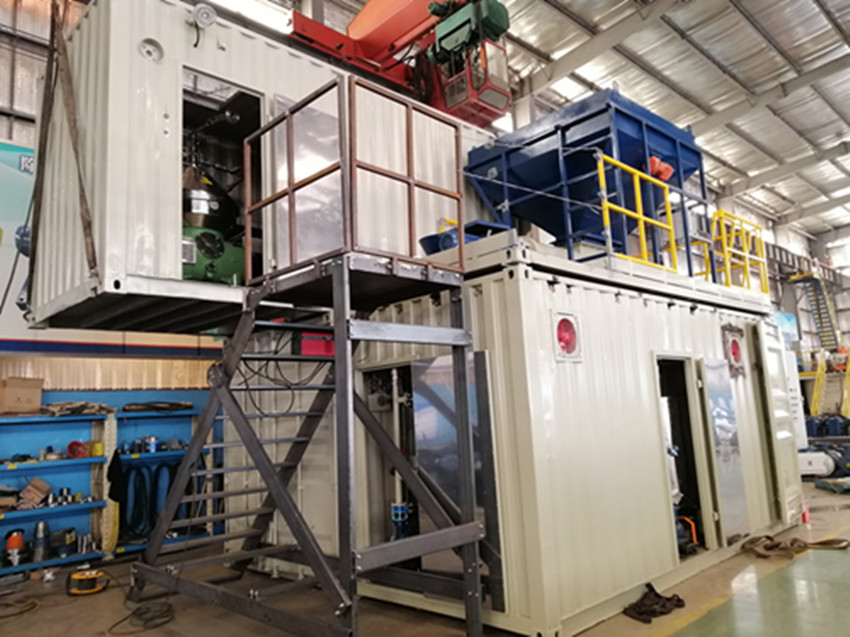

Oily Sludge Treatment System for Delivery
FD Petrol finished manufacture for two sets oily sludge treatment system for oilfield service company .Each system composed of three containers.Treating capacity is 5tons/hour,the whole system is PLC control suitable for oil tank cleaning,oily sludge treatment,oil based mud waste further treatment.
The oily sludge system working process as below .
1.The hopper with screw conveyor recieve oily sludge and feed for the pre-heating and mixing tank in the first container
2.The oily sludge were mixed with our chemicals in the mixing tank,max capacity is 16tons/hour
3.Feed the material to DW2000 waste management centrifuge
4.Liquid phase from DW2000 centrifuge will be fed to the disc stack centrifuge for three phase separation.
5.Solid phase oil content less than 3% will be discharged .
6.Recovered oil density less than 1.0g/cm³
The oily sludge system working process as below .
1.The hopper with screw conveyor recieve oily sludge and feed for the pre-heating and mixing tank in the first container
2.The oily sludge were mixed with our chemicals in the mixing tank,max capacity is 16tons/hour
3.Feed the material to DW2000 waste management centrifuge
4.Liquid phase from DW2000 centrifuge will be fed to the disc stack centrifuge for three phase separation.
5.Solid phase oil content less than 3% will be discharged .
6.Recovered oil density less than 1.0g/cm³
